Commercial Vinyl Tilt and Turn Windows

Series 4500

Lifestyle Look

  • Great performance
  • Dual action french window and hopper
  • Works great as an egress window
  • Clear views with easy access cleaning

Commercial Vinyl Tilt and Turn Windows

Commerical Vinyl Tilt and Turn Windows

Structural Data & Efficiency Performance

STRUCTURAL TEST DATA:
Rating: CS-PG70
Wind Pressure Load: 70.1
Water Penetration Resistance: 10.65 PSF
Air Infiltration at 25mph: 0.17 CFM
ENERGY RATING FACTORS:
Glass: Low E / Argon
Thermal Transmittance (U Factor): Down to 0.29
Solar Heat Gain (SHGC): 0.19
Visible Light Transmittance (VT): 0.43
Condensation Resistance Factor: 61.0

Grid Options

Newtec-Windows-Chicago-Swipe

Interior Colors

  • [css3_tooltip header=’Interior Color: White’ content=’Interior Color White for Chicago Commercial Vinyl Tilt and Turn Windows
    ‘ position=’diagonal_right_top’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’]Commercial Vinyl Tilt and Turn Windows blank-color[/css3_tooltip]
  • [css3_tooltip header=’Interior Color: Beige’ content=’Interior Color Beige for Chicago Commercial Vinyl Tilt and Turn Windows
    ‘ position=’top_center’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’ ]Commercial Vinyl Tilt and Turn Windows blank-color 1[/css3_tooltip]
  • [css3_tooltip header=’Interior Color: Golden Oak’ content=’Interior Color Golden Oak for Chicago Commercial Vinyl Tilt and Turn Windows
    ‘ position=’top_center’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’ ]Commercial Vinyl Tilt and Turn Windows blank-color 2[/css3_tooltip]
  • [css3_tooltip header=’Interior Color: Natural Oak’ content=’Interior Color Natural Oak for Chicago Commercial Vinyl Tilt and Turn Windows
    ‘ position=’top_center’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’ ]Commercial Vinyl Tilt and Turn Windows blank-color 3[/css3_tooltip]

Exterior Colors

  • [css3_tooltip header=’Interior Color: White’ content=’Interior Color White for Chicago Commercial Vinyl Tilt and Turn Windows
    ‘ position=’diagonal_right_top’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’]Commercial Vinyl Tilt and Turn Windows blank-color 4[/css3_tooltip]
  • [css3_tooltip header=’Interior Color: Beige’ content=’Interior Color Beige for Chicago Commercial Vinyl Tilt and Turn Windows
    ‘ position=’top_center’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’ ]Commercial Vinyl Tilt and Turn Windows blank-color 5[/css3_tooltip]

Custom Colors Available

Simulated Divided Lite (SDL)

Simulated-Divided-Lites Provide you with an authentic divided glass look. The Grids are permanently adhered to the outside surfaces of the glass. Historical preservation and shadowing make this a desirable feature among restoration remodelers.

Commercial Vinyl Tilt and Turn Windows

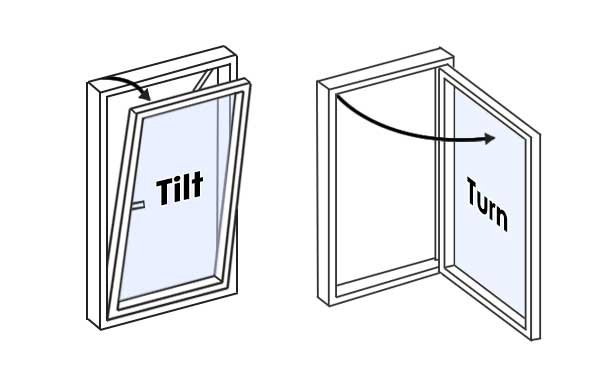

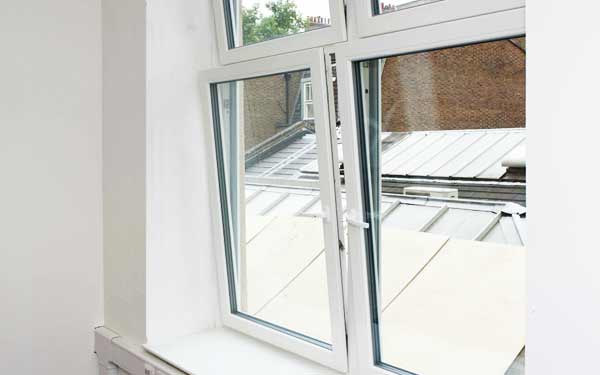

Ultimate Design, High Performance. The System 4500 tilt-turn design offers builders and architects a very unique product for large openings in both residential and commercial markets. This design allows the window to operate in either a tilt or turn position. You get three window functions in one: traditional casement look in the turn position, convenient top ventilation in the tilt position, and elegant picture window when closed.

Features of the Commercial Vinyl Tilt and Turn Windows

  • Compression seal sash with two weather seals.
  • Multi-point locking hardware.
  • Superior sound abatement properties.
  • Ability to build awning and hopper styles with natural ventilation while providing security.
  • Increased security and product performance while maintaining a pleasing appearance.
  • Provides a more comfortable living space by increasing energy efficiency and reducing exterior noise infiltration.
  • Encased steel reinforcement.



PRODUCT LIST

SINGLE HUNG

DOUBLE HUNG

SLIDING

CASEMENT


TILT & TURN

HOPPER

AWNING

Get Pro Pricing & Discounts

773.869.9888

Call Now

Glass Packages

Packages Thermal Performance Cost Cardinal Glass Glass Unit Gas Fill Spacer System
Double Pane LowE-272 3/4″ double pane Argon Intercept Warm Edge
Double Pane LowE-366 7/8″ double pane Argon Intercept Warm Edge
Triple Pane LowE-272 7/8″ double pane Argon Intercept Warm Edge
Glass Options
cardinal-i89-glass-package-optionsLoĒ-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping heat back into the room and lowering U-factors. Coupled with our LoĒ² or LoĒ³ glass and argon fill, this double-pane unit delivers performance much better than clear triple-pane – a center of glass U-factor of just 0.20 compared to 0.37 with clear triple-pane.
cardinal-neat-glass-glass-package-optionsCardinal introduces Neat® naturally clean glass. It harnesses the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. Your windows will stay cleaner longer and will clean easier.
Newtec Windows Laminated Glass OptionsIf laminated glass is broken, the vinyl interlayer remains in the frame, with glass fragments adhering to the interlayer. This provides a strong barrier against forced entry and cannot be cut from one side only, which renders glasscutters useless.
Newtec Windows Tempered Glass OptionsTempered Glass Shatters completely under higher levels of impact energy, and few pieces remain in the frame.
Newtec Windows Frosted Glass Options Frosted Glass is produced by the sandblasting or acid etching of clear sheet glass. It has the effect of rendering the glass translucent by scattering of light during transmission, thus blurring images while still transmitting light and protecting your privacy.

Window Configurations

Options
  • White or beige core color
  • Woodgrain laminated colors on interior and solid colors on exterior
  • 1″ insulated glass.
  • Sash and frame accepts steel reinforcement
  • Brickmolds, jamb-extensions, drywall returns, mullion covers, T-mullions
Hardware and Screens

Lock: Two-dimensionally guided cam lock
Stay: Arrestable ventilation stay, engageable brake-stay, and turn restrictor
Handle set: Standard, lockable, push-button or tilt-first
Screen: Fiberglass mesh (Standard)
Screen frame: Aluminum
