Home / Residential / Vinyl Swinging Doors

Residential Vinyl Swing Door

Series 4500

Lifestyle Look

  • Bring the outdoors in
  • Create a feeling of openness
  • Use more natural light
  • Create a clean natural feeling

Vinyl Swinging Doors

Residential Vinyl Swing Doors

Structural Data & Efficiency Performance

STRUCTURAL TEST DATA:
Rating: R65-R80, C80-HC100
Wind Pressure Load: 100 PSF
Water Penetration Resistance: 12.0 PSF
Air Infiltration at 25mph: 0.03 CFM
ENERGY RATING FACTORS:
Glass: Low E / Argon
Thermal Transmittance (U Factor): 0.32
Solar Heat Gain (SHGC): 0.28
Visible Light Transmittance (VT): 0.46
Condensation Resistance Factor: 56.0

Grid Options

Newtec-Windows-Chicago-Swipe

Custom Colors Available

Simulated Divided Lite (SDL)

Simulated-Divided-Lites Provide you with an authentic divided glass look. The Grids are permanently adhered to the outside surfaces of the glass. Historical preservation and shadowing make this a desirable feature among restoration remodelers.

Vinyl Swinging Doors

Ultimate Design, High Performance

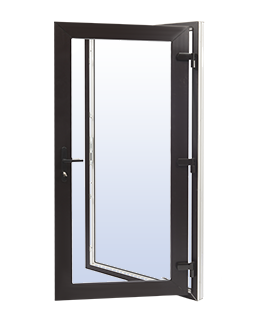

The System 4500 door designs offer builders and architects a very unique product for both residential and commercial markets. This versatile design provides inward and outward opening styles as well as French door configurations. Available in white and beige PVC, this system can also be laminated with solid color or wood-grain foils. Matching windows in tilt-turn, hopper, awning and fixed styles are also available.

Features of the Vinyl Swinging Doors

  • Compression seal sash with two weather seals.
  • Multi-point locking hardware.
  • Superior sound abatement properties.
  • Ability to build awning and hopper styles with natural ventilation while providing security.
  • Increased security and product performance while maintaining a pleasing appearance.
  • Provides a more comfortable living space by enhancing energy efficiency and reducing exterior noise infiltration.

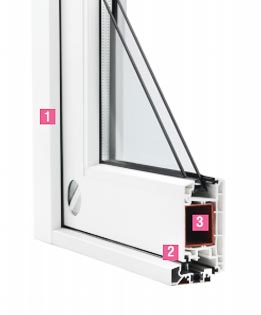

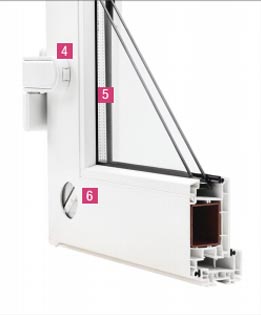

Unique PVC corner blocks connect steel reinforcement keeping hinged door corners in-square for long-term, troublefree operation. Outward opening (left) and inward opening (right) styles meet a variety of design requirements.

Frame profiles with different depths

  • Provide flexibility for new construction and replacement applications

Multiple locking points and compression seals all around the sash perimeter

  • Provide high water performance, minimal air infiltration, security and good sound insulation

Large reinforcement chambers in the sash

  • Allow for sash sizes as large as 8 ft (2.4 m) high and 3.5 ft (1.1 m) wide for single doors and 3 ft (0.9 m) wide for French doors

High quality hardware

  • Operates quietly and effortlessly

Large glazing capacity, including special high-performance glass of 1 3/8” (35 mm) in thickness

  • Improves energy efficiency and acoustical properties

Weldable corner joints in the sash profiles

  • Strengthen the door panel against distortion and provide long-term, smooth operation
Unique PVC corner blocks connect steel reinforcement keeping hinged door corners in-square for long-term, troublefree operation. Outward opening (left) and inward opening (right) styles meet a variety of design requirements.

Frame profiles with different depths

  • Provide flexibility for new construction and replacement applications

Multiple locking points and compression seals all around the sash perimeter

  • Provide high water performance, minimal air infiltration, security and good sound insulation

Large reinforcement chambers in the sash

  • Allow for sash sizes as large as 8 ft (2.4 m) high and 3.5 ft (1.1 m) wide for single doors and 3 ft (0.9 m) wide for French doors

High quality hardware

  • Operates quietly and effortlessly

Large glazing capacity, including special high-performance glass of 1 3/8” (35 mm) in thickness

  • Improves energy efficiency and acoustical properties

Weldable corner joints in the sash profiles

  • Strengthen the door panel against distortion and provide long-term, smooth operation

Glass Packages

Packages Thermal Performance Cost Cardinal Glass Glass Unit Gas Fill Spacer System
Double Pane LowE-272 3/4″ double pane Argon Intercept Warm Edge
Double Pane LowE-366 7/8″ double pane Argon Intercept Warm Edge
Triple Pane LowE-272 7/8″ double pane Argon Intercept Warm Edge
Glass Options
cardinal-i89-glass-package-optionsLoĒ-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping heat back into the room and lowering U-factors. Coupled with our LoĒ² or LoĒ³ glass and argon fill, this double-pane unit delivers performance much better than clear triple-pane – a center of glass U-factor of just 0.20 compared to 0.37 with clear triple-pane.
cardinal-neat-glass-glass-package-optionsCardinal introduces Neat® naturally clean glass. It harnesses the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. Your windows will stay cleaner longer and will clean easier.
Newtec Windows Laminated Glass OptionsIf laminated glass is broken, the vinyl interlayer remains in the frame, with glass fragments adhering to the interlayer. This provides a strong barrier against forced entry and cannot be cut from one side only, which renders glasscutters useless.
Newtec Windows Tempered Glass OptionsTempered Glass Shatters completely under higher levels of impact energy, and few pieces remain in the frame.
Newtec Windows Frosted Glass Options Frosted Glass is produced by the sandblasting or acid etching of clear sheet glass. It has the effect of rendering the glass translucent by scattering of light during transmission, thus blurring images while still transmitting light and protecting your privacy.
Options
  • White or beige core color
  • Woodgrain laminated colors on interior and solid colors on exterior
  • 1” insulated glass
  • Sash and frame accepts steel reinforcement
  • Brickmolds, jamb-extensions, drywall returns, mullion covers, T-mullions
Hardware and Screens
Hinges: Stainless steel multi-point hinges

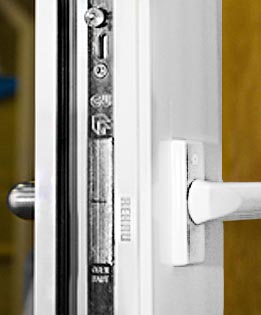

Locking system: Roto Multi-point locking system or similar

Door Configurations
