Home / Residential / Vinyl Casement Windows

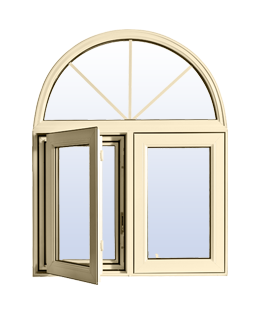

Residential VinylCasement Windows

Series 1400

Lifestyle Look

  • Superb Performance Matrix
  • Easy of use
  • Elegantly designed operator handle
  • Corrosion resistant operating hardware

Residential VinylCasement Windows

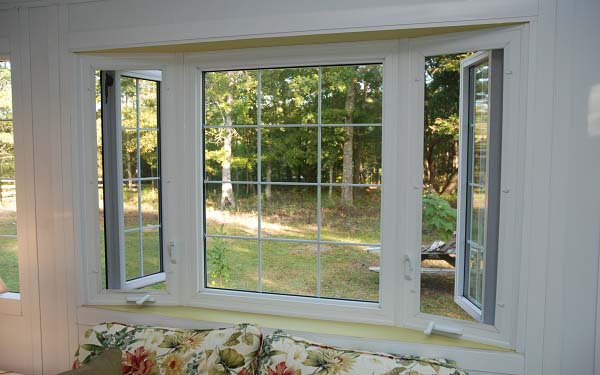

Newtec uses Rehau vinyl product to fabricate the unsurpassed casement windows that the first (and only) vinyl window design ever to earn a performance rating in the highest classification defined in the window industry (AAMA 101 “Architectural” Grade 70). Easy to operate, strong, energy efficient, quiet, and durable, the sash features a contoured shape similar to fine millwork fabrication. The System 1400 is appropriate for any building application—residential and commercial. You can rest assured that you are buying the ultimate in weather tightness, energy efficiency and structural integrity. Simple styling, durable hardware and smooth vinyl components provide years of maintenance-free operation. Many options and custom configurations such as bays, bows and architectural shapes are available to meet virtually any styling or performance requirement. The classic detailing and state-of-the-art engineering built into this window will give you years of carefree enjoyment.

Features of the Residential VinylCasement Windows

  • 3-1/4” frame depth with multi-chambered rigid Rehau vinyl ensures extra rigidity and insulating value for strength and insulation
  • Fusion welded corners in frame and sash for structural integrity and outstanding air and water tightness
  • Multiple weather stripping prevents drafts and infiltration of moisture and dust
  • 7/8” Intercept WarmEdge insulated glass units for superior energy saving
  • 90o Swing-out sashes for easy cleaning from inside and better ventilation
  • Multi-point locking system for safety and air tightness
  • Corrosion-resistant cranking operator for full range sash movement
  • Full screen with fiberglass cloth for operating sash included
  • Triple panes glass available.



Residential Vinyl Casement Window

Residential Vinyl Casement Windows

Structural Data & Efficiency Performance

STRUCTURAL TEST DATA:
Rating: PG-50
Wind Pressure Load: 75 PSF
Water Penetration Resistance: 7.5 PSF
Air Infiltration at 25mph: 0.02 CFM
ENERGY RATING FACTORS:
Glass: Low E / Argon
Thermal Transmittance (U Factor): 0.27
Solar Heat Gain (SHGC): 0.24
Visible Light Transmittance (VT): 0.43
Condensation Resistance Factor: 64.0

Grid Options

Newtec-Windows-Chicago-Swipe

Interior Colors

  • [css3_tooltip header=’Interior Color: White’ content=’Interior Color White for Chicago Residential Vinyl Casement Windows
    ‘ position=’diagonal_right_top’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’]Residential Vinyl Casement Windows blank-color[/css3_tooltip]
  • [css3_tooltip header=’Interior Color: Beige’ content=’Interior Color Beige for Chicago Residential Vinyl Casement Windows
    ‘ position=’top_center’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’ ]Residential Vinyl Casement Windows blank-color 1[/css3_tooltip]
  • [css3_tooltip header=’Interior Color: Golden Oak’ content=’Interior Color Golden Oak for Chicago Residential Vinyl Casement Windows
    ‘ position=’top_center’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’ ]Residential Vinyl Casement Windows blank-color 2[/css3_tooltip]
  • [css3_tooltip header=’Interior Color: Natural Oak’ content=’Interior Color Natural Oak for Chicago Residential Vinyl Casement Windows
    ‘ position=’top_center’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’ ]Residential Vinyl Casement Windows blank-color 3[/css3_tooltip]

Exterior Colors

  • [css3_tooltip header=’Interior Color: White’ content=’Interior Color White for Chicago Residential Vinyl Casement Windows
    ‘ position=’diagonal_right_top’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’]Residential Vinyl Casement Windows blank-color 4[/css3_tooltip]
  • [css3_tooltip header=’Interior Color: Beige’ content=’Interior Color Beige for Chicago Residential Vinyl Casement Windows
    ‘ position=’top_center’ tag=’a’ width=’180px’ style=’style_2′ delay=’0′ cursor=’pointer’ event=’hover’ ]Residential Vinyl Casement Windows blank-color 5[/css3_tooltip]

Custom Colors Available

Simulated Divided Lite (SDL)



Simulated-Divided-Lites Provide you with an authentic divided glass look. The Grids are permanently adhered to the outside surfaces of the glass. Historical preservation and shadowing make this a desirable feature among restoration remodelers.

PRODUCT LIST

SINGLE HUNG

DOUBLE HUNG

SLIDING

CASEMENT


window chicago bow window icon

BOW

AWNING

Get Pro Pricing & Discounts

773.869.9888

Call Now

Glass Packages

Packages Thermal Performance Cost Cardinal Glass Glass Unit Gas Fill Spacer System
Double Pane LowE-272 7/8″ double pane Argon Intercept Warm Edge
Double Pane LowE-366 7/8″ double pane Argon Intercept Warm Edge
Triple Pane LowE-272 7/8″ double pane Argon Intercept Warm Edge
cardinal-i89-glass-package-optionsLoĒ-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping heat back into the room and lowering U-factors. Coupled with our LoĒ² or LoĒ³ glass and argon fill, this double-pane unit delivers performance much better than clear triple-pane – a center of glass U-factor of just 0.20 compared to 0.37 with clear triple-pane.
Newtec Windows Tempered Glass OptionsTempered Glass Shatters completely under higher levels of impact energy, and few pieces remain in the frame.
cardinal-neat-glass-glass-package-optionsCardinal introduces Neat® naturally clean glass. It harnesses the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. Your windows will stay cleaner longer and will clean easier.
Newtec Windows Laminated Glass Options If laminated glass is broken, the vinyl interlayer remains in the frame, with glass fragments adhering to the interlayer. This provides a strong barrier against forced entry and cannot be cut from one side only, which renders glasscutters useless.
Newtec Windows Frosted Glass Options Frosted Glass is produced by the sandblasting or acid etching of clear sheet glass. It has the effect of rendering the glass translucent by scattering of light during transmission, thus blurring images while still transmitting light and protecting your privacy.

Window Configurations

Options
  • Connector to combine with other 1400 product family (including casement, transom and
    picture windows)
  • Aluminum mesh screen.
  • Nailing fin for new construction
  • Triple panes glass available.
Hardware and Screens
Lock: Multi-point locking system
Operator: Gear drive operator
Hinge: Stainless steel hinges
Screen: Fiberglass mesh (Standard),
Aluminum mesh (Optional)
Screen frame: Aluminum roll form
