Home / Residential / Vinyl Picture Windows

Residential Vinyl Picture Windows

Series 600/1400

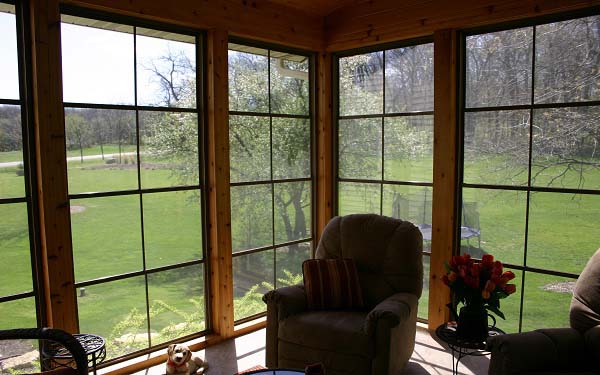

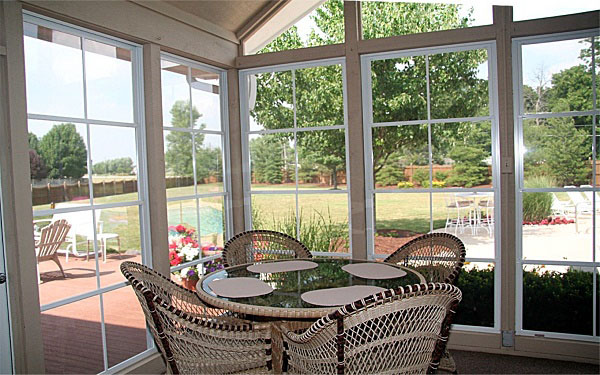

Lifestyle Look

  • Bring the outdoors in
  • Create a feeling of openness
  • Use more natural light
  • Create a clean natural feeling

Residential Vinyl Picture Windows

Our 600 and 1400 series residential vinyl picture windows are beautiful. They will enhance your view with the clean styling and grace. Your home will have lasting trouble-free elegance. Our picture windows provide numerous energy-saving features to keep your heating and cooling costs down.  All our vinyl windows are constructed from our proprietary vinyl compound, resisting condensation and mold. These picture windows pair nicely together with single-hung, double-hung, hoppers and double-slider for 600 series, casement and awning windows for 1400 series. They are also a standard feature that is incorporated with bay or bow windows.  Whether paired with other window types or alone, the picture window is the essential of simplicity and light. Picture windows are easily made into various architectural shapes as per your needs.  This makes them popular for archways and other elegant structures. The System 600 and 1400 window designs are suited for residential and light commercial applications, and work well in replacement and new construction.

Features of the Residential Vinyl Picture Windows

  • 3-1/4” frame depth, rigid virgin vinyl are strong, durable and weather tight.
  • Fusion welded corners in frame and sash for superior strength and tightness.
  • 7/8” Intercept WarmEdge insulated glass units for superior energy savings.

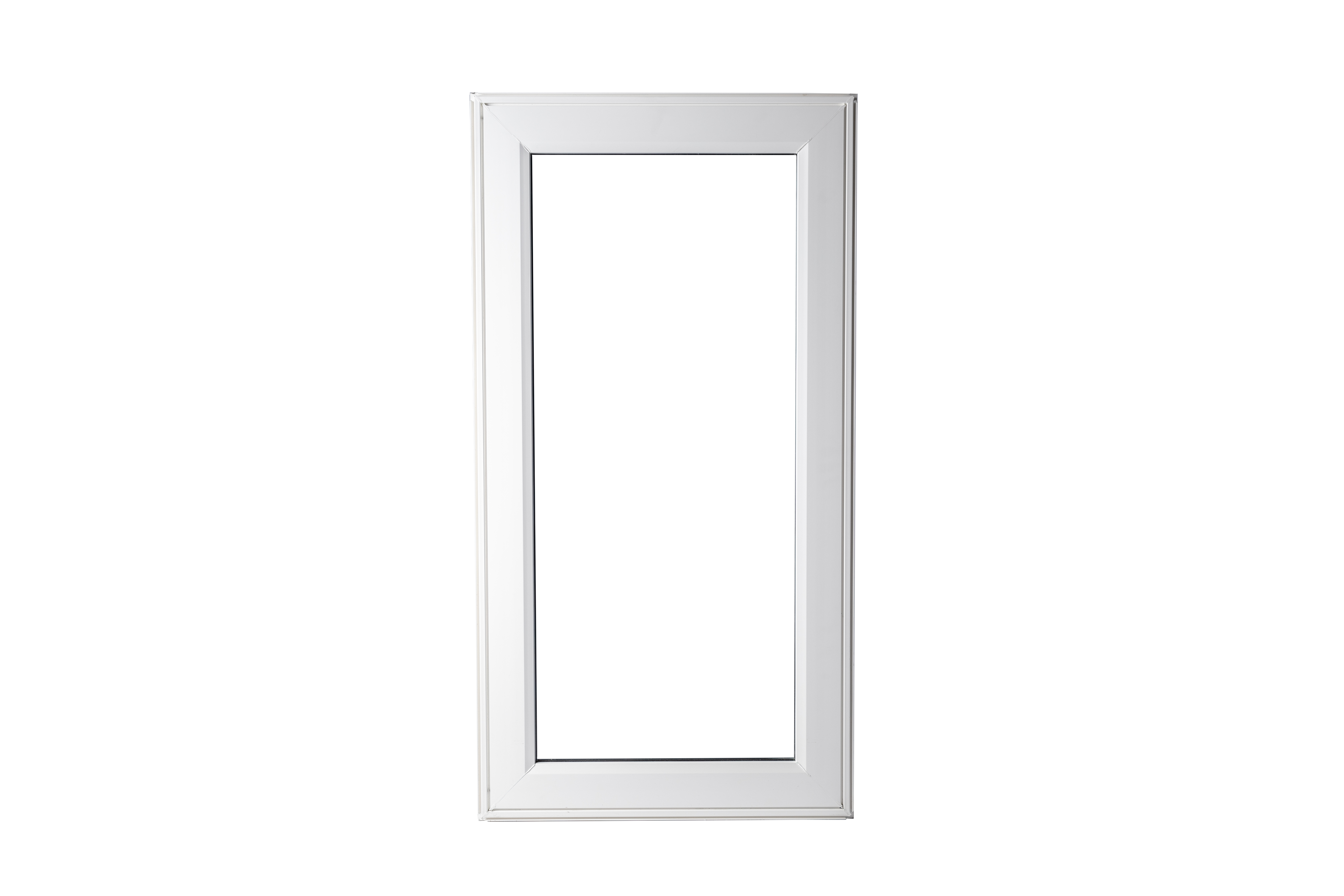

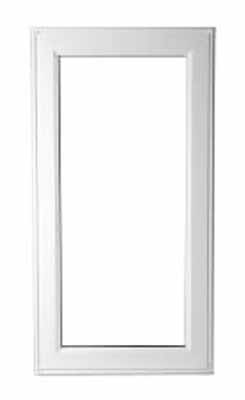

Residential Vinyl Picture Window

residential-windows_residential-vinyl-picture-windows

Structural Data & Efficiency Performance

STRUCTURAL TEST DATA:
Rating: F-R70
Wind Pressure Load: 75 PSF
Water Penetration Resistance: 23.0 PSF
Air Infiltration at 25mph: 0.10 CFM
ENERGY RATING FACTORS:
Glass: Low E / Argon
Thermal Transmittance (U Factor): 0.28
Solar Heat Gain (SHGC): 0.29
Visible Light Transmittance (VT): 0.49
Condensation Resistance Factor: 63.0

Grid Options

Newtec-Windows-Chicago-Swipe

Custom Colors Available

Simulated Divided Lite (SDL)

Simulated-Divided-Lites Provide you with an authentic divided glass look. The Grids are permanently adhered to the outside surfaces of the glass. Historical preservation and shadowing make this a desirable feature among restoration remodelers.

PRODUCT LIST

SINGLE HUNG

DOUBLE HUNG

SLIDING

CASEMENT


window chicago bow window icon

BOW

AWNING

Get Pro Pricing & Discounts

773.869.9888

Call Now

Glass Packages

Packages Thermal Performance Cost Cardinal Glass Glass Unit Gas Fill Spacer System
Double Pane LowE-272 7/8″ double pane Argon Intercept Warm Edge
Double Pane LowE-366 7/8″ double pane Argon Intercept Warm Edge
Triple Pane LowE-272 7/8″ double pane Argon Intercept Warm Edge
cardinal-i89-glass-package-optionsLoĒ-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping heat back into the room and lowering U-factors. Coupled with our LoĒ² or LoĒ³ glass and argon fill, this double-pane unit delivers performance much better than clear triple-pane – a center of glass U-factor of just 0.20 compared to 0.37 with clear triple-pane.
Newtec Windows Tempered Glass OptionsTempered Glass Shatters completely under higher levels of impact energy, and few pieces remain in the frame.
cardinal-neat-glass-glass-package-optionsCardinal introduces Neat® naturally clean glass. It harnesses the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. Your windows will stay cleaner longer and will clean easier.
Newtec Windows Laminated Glass Options If laminated glass is broken, the vinyl interlayer remains in the frame, with glass fragments adhering to the interlayer. This provides a strong barrier against forced entry and cannot be cut from one side only, which renders glasscutters useless.
Newtec Windows Frosted Glass Options Frosted Glass is produced by the sandblasting or acid etching of clear sheet glass. It has the effect of rendering the glass translucent by scattering of light during transmission, thus blurring images while still transmitting light and protecting your privacy.

Window Configurations

Options
  • Connectors (H-mullion) to combine with other 600 product family (including double hung,
    single hung, hoppers, circle tops, transom, sliders), and 1400 product family (including
    casement and awning window combinations).
  • Triple panes glass available.
  • Nailing fin for new construction.
Hardware and Screens
Lock: Cam lock and keeper
Screen: Fiberglass mesh (Standard),
Aluminum mesh (Optional)
Screen frame: Aluminum roll form
