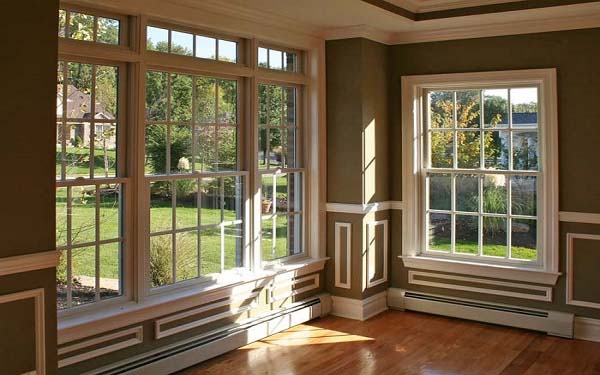

Residential Vinyl Double Hung Windows
Series 600
Lifestyle Look
- Great Performance
- Easy to clean outside glass from inside
- Ideal for vinyl replacement windows
- Home owners top choice

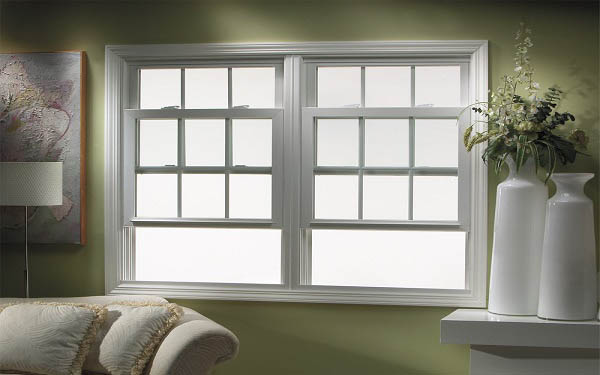

Residential Vinyl Double Hung Windows
The ultimate in design and function, these beautiful windows will grace your home with lasting, trouble-free elegance. These windows will enhance your view with the clean styling of exterior glazing, recessed tilt latches and narrow vinyl profiles. They provide numerous energy-saving features to keep your heating and cooling costs down. Constructed of a proprietary vinyl compound, these windows resist condensation and mold, and provide years of smooth, carefree operation. Many options and custom combinations such as bays, bows and architectural shapes are available to meet virtually any styling or performance requirement.

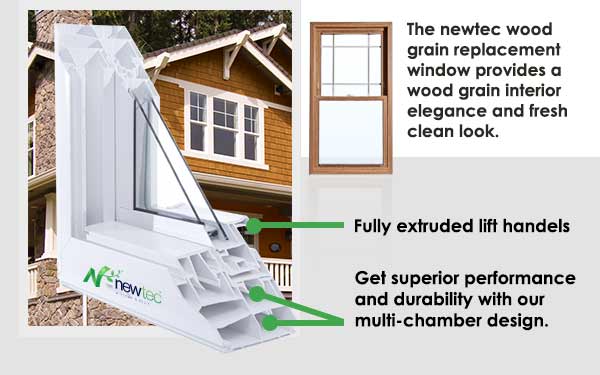

Features of the Residential Vinyl Double Hung Windows
- 3-1/4” frame depth, rigid virgin vinyl is strong, durable and weather tight.
- Fusion welded corners in frame and sash for superior strength and tightness.
- Multiple weather stripping prevents drafts and infiltration of moisture and dust.

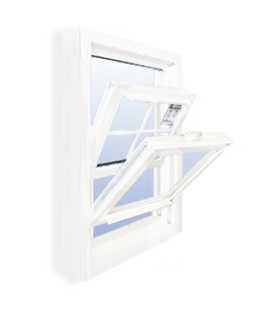

- Tilt in sashes for easy cleaning and operation.
- The latches are recessed into the sash profile for strength and a neat, flush appearance.
- 7/8” Intercept WarmEdge insulated glass units for superior energy savings.
- Built-in integral interlock between sashes adds security and energy efficiency.
- Fully-extruded lift handles for durability and easy operation.
- Stainless constant force balancing system for better performance.
- Half screen with fiberglass cloth included.
- Vent latch for extra safety.
Residential Vinyl Double Hung Window
Structural Data & Efficiency Performance
STRUCTURAL TEST DATA:
| Rating: | PG-35 |
|---|---|
| Wind Pressure Load: | 52.5 PSF |
| Water Penetration Resistance: | 5.25 PSF |
| Air Infiltration at 25mph: | 0.27 CFM |
ENERGY RATING FACTORS:
| Glass: | Low E / Argon |
|---|---|
| Thermal Transmittance (U Factor): | 0.29 |
| Solar Heat Gain (SHGC): | 0.29 |
| Visible Light Transmittance (VT): | 0.35 |
| Condensation Resistance Factor: | 56.0 |
Architectural Shapes
Grid Options
Interior Colors
Exterior Colors
Custom Colors Available
Simulated Divided Lite (SDL)
Simulated-Divided-Lites Provide you with an authentic divided glass look. The Grids are permanently adhered to the outside surfaces of the glass. Historical preservation and shadowing make this a desirable feature among restoration remodelers.
PRODUCT LIST
SINGLE HUNG
DOUBLE HUNG
SLIDING
CASEMENT
BOW
AWNING
Get Pro Pricing & Discounts
773.869.9888
Call Now
Glass Packages
| Packages | Thermal Performance | Cost | Cardinal Glass | Glass Unit | Gas Fill | Spacer System |
|---|---|---|---|---|---|---|
 |
 |
|
 Double Pane LowE-272
|
 7/8″ double pane
|
 Argon
|
 Intercept Warm Edge
|
 |
|
|
 Double Pane LowE-366
|
7/8″ double pane
|
Argon
|
Intercept Warm Edge
|
 |
|
|
Triple Pane LowE-272
|
7/8″ double pane
|
Argon
|
Intercept Warm Edge
|
LoĒ-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping heat back into the room and lowering U-factors. Coupled with our LoĒ² or LoĒ³ glass and argon fill, this double-pane unit delivers performance much better than clear triple-pane – a center of glass U-factor of just 0.20 compared to 0.37 with clear triple-pane.
Tempered Glass Shatters completely under higher levels of impact energy, and few pieces remain in the frame.
Cardinal introduces Neat® naturally clean glass. It harnesses the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. Your windows will stay cleaner longer and will clean easier.
If laminated glass is broken, the vinyl interlayer remains in the frame, with glass fragments adhering to the interlayer. This provides a strong barrier against forced entry and cannot be cut from one side only, which renders glasscutters useless.
Frosted Glass is produced by the sandblasting or acid etching of clear sheet glass. It has the effect of rendering the glass translucent by scattering of light during transmission, thus blurring images while still transmitting light and protecting your privacy.Window Configurations
Options
- Full screen.
- Aluminum mesh screen.
- Connector to combine with 600 Series products (including double hung, circle tops, transom and picture windows)
- Double locks
- Cottage style (bottom sash larger than top sash)
- Oriel style (top sash larger than bottom sash)
- Triple pane glass.
- Nailing fin for new construction
Hardware and Screens
Balancing system: Stainless constant force balances
Pivot bar: Steel
Screen: Fiberglass mesh (Standard),
Aluminum mesh (Optional)
Screen frame: Aluminum roll form
