Residential VinylAwning Windows
Series 1400
Lifestyle Look
- Easy of use
- Elegantly designed operator handle
- Superb Performance Matrix
- Corrosion resistant operating hardware

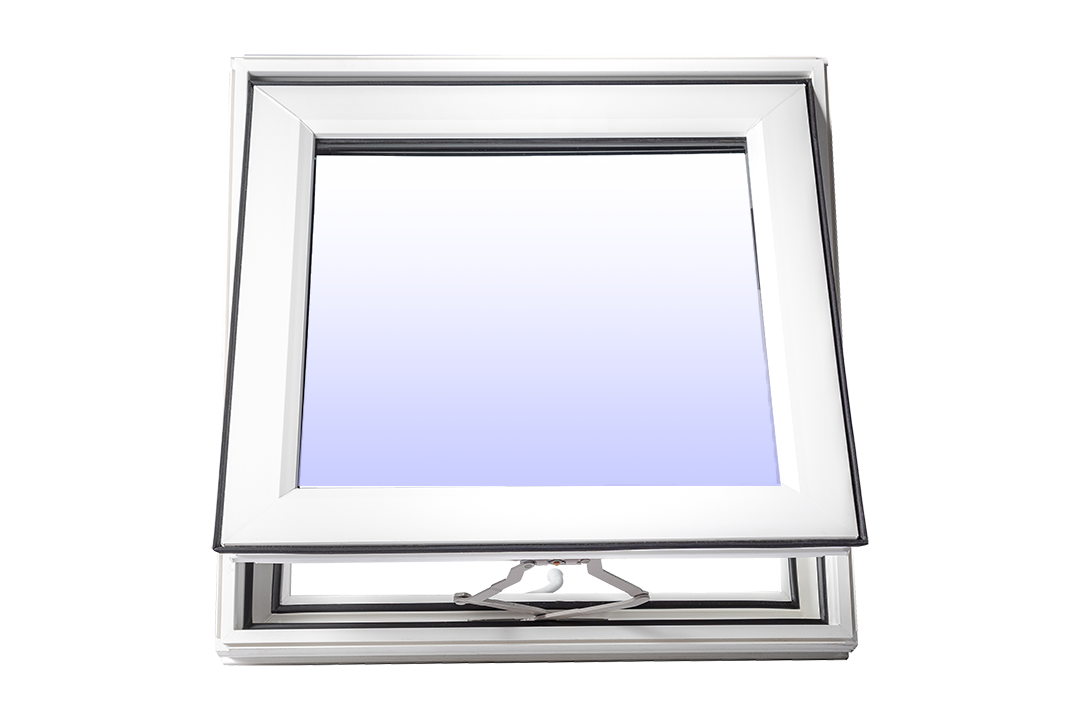

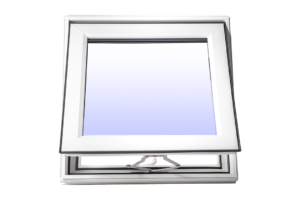

Residential VinylAwning Windows
Sleek Design, Superb Performance

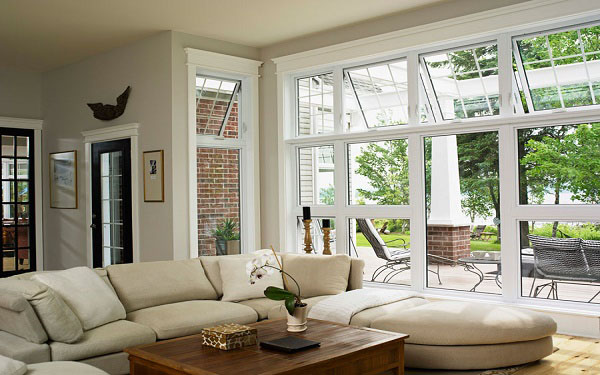

Awning windows are hinged at the top and opened outwards from bottom in an upward swing to allow ventilation. This Series 1400 awning window design achieves the highest available performance for vinyl windows. They can be installed as one sash windows or seamlessly assembled with picture windows or other 1400 products. You can rest assured that you are buying the ultimate in weather tightness, energy efficiency and structural integrity. Simple styling, durable hardware and smooth vinyl components provide years of maintenance-free operation. The classic detailing and state-of-the-art engineering built into this window will give you years of carefree enjoyment.
Features of the Residential VinylAwning Windows
- 3-1/4” frame depth with multi-chambered rigid vinyl ensures extra rigidity and insulating value for strength and insulation.
- Fusion welded corners in frame and sash for structural integrity and outstanding air and water tightness.
- Multiple weather stripping prevents drafts and infiltration of moisture and dust.
- Tilt in sashes for easy cleaning and operation.
- 7/8” Intercept WarmEdge insulated glass units for superior energy savings.
- Stainless steel hinges.
- Corrosion-resistant cranking operator for full range sash movement.
- Full screen with fiberglass cloth for operating sash included.
- Triple panes glass available.
Residential Vinyl Awning Window
Structural Data & Efficiency Performance
STRUCTURAL TEST DATA:
| Rating: | PG-50 |
|---|---|
| Wind Pressure Load: | 75 PSF |
| Water Penetration Resistance: | 9.0 PSF |
| Air Infiltration at 25mph: | 0.02 CFM |
ENERGY RATING FACTORS:
| Glass: | Low E / Argon |
|---|---|
| Thermal Transmittance (U Factor): | 0.27 |
| Solar Heat Gain (SHGC): | 0.24 |
| Visible Light Transmittance (VT): | 0.43 |
| Condensation Resistance Factor: | 64.0 |
Architectural Shapes
Grid Options
Interior Colors
Exterior Colors
Custom Colors Available
Simulated Divided Lite (SDL)
Simulated-Divided-Lites Provide you with an authentic divided glass look. The Grids are permanently adhered to the outside surfaces of the glass. Historical preservation and shadowing make this a desirable feature among restoration remodelers.
PRODUCT LIST
SINGLE HUNG
DOUBLE HUNG
SLIDING
CASEMENT
BOW
AWNING
Get Pro Pricing & Discounts
773.869.9888
Call Now
Glass Packages
| Packages | Thermal Performance | Cost | Cardinal Glass | Glass Unit | Gas Fill | Spacer System |
|---|---|---|---|---|---|---|
 |
 |
|
 Double Pane LowE-272
|
 7/8″ double pane
|
 Argon
|
 Intercept Warm Edge
|
 |
|
|
 Double Pane LowE-366
|
7/8″ double pane
|
Argon
|
Intercept Warm Edge
|
 |
|
|
Triple Pane LowE-272
|
7/8″ double pane
|
Argon
|
Intercept Warm Edge
|
LoĒ-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping heat back into the room and lowering U-factors. Coupled with our LoĒ² or LoĒ³ glass and argon fill, this double-pane unit delivers performance much better than clear triple-pane – a center of glass U-factor of just 0.20 compared to 0.37 with clear triple-pane.
Tempered Glass Shatters completely under higher levels of impact energy, and few pieces remain in the frame.
Cardinal introduces Neat® naturally clean glass. It harnesses the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. Your windows will stay cleaner longer and will clean easier.
If laminated glass is broken, the vinyl interlayer remains in the frame, with glass fragments adhering to the interlayer. This provides a strong barrier against forced entry and cannot be cut from one side only, which renders glasscutters useless.
Frosted Glass is produced by the sandblasting or acid etching of clear sheet glass. It has the effect of rendering the glass translucent by scattering of light during transmission, thus blurring images while still transmitting light and protecting your privacy.Window Configurations
Options
- Aluminum mesh screen.
- Connector to combine with other 1400 product family including casement circle tops, transom and picture windows.
- Nailing fin for new construction
- Triple pane glass available
Hardware and Screens
Lock: Locking handle and keeper
Operator: Gear drive operator
Hinge: Stainless steel hinges
Screen: Fiberglass mesh (Standard),
Aluminum mesh (Optional)
Screen frame: Aluminum roll form
Glass Options
