Residential Aluminum Double Hung Windows
Series 2000 (For Residential and Commercial)
Lifestyle Look
- Great Performance
- Easy to clean outside glass from inside
- Ideal for commercial window replacement
- Property owners top choice
Residential Aluminum Double Hung Windows

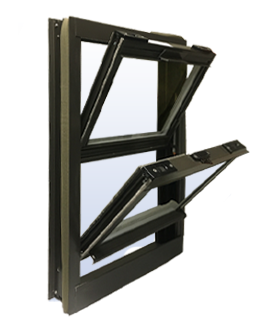

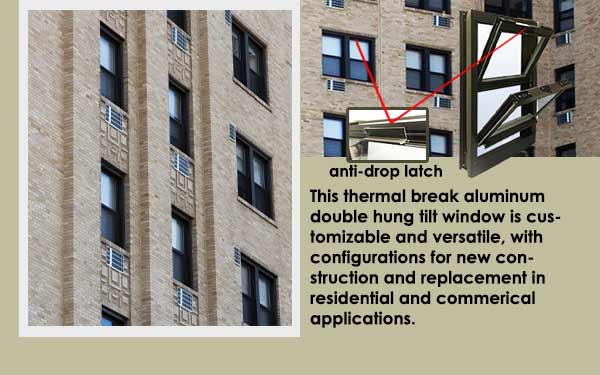

Newtec Series 2000 thermal break aluminum double hung tilt window is customizable and versatile, with configurations for new construction and replacement in residential and commercial application. Both frame and sashes of this window are assembled with built-in thermal barrier to insulate heat transfer. “Duraseal” warm edge glass spacer integrates glazing units with superior energy saving accomplishment. Commercial rated double weather-stripping and exterior sash seal combine to provide exceptional performance. In addition, rubber weather-stripping on the sash provides better thermal insulation by preventing water and air infiltration. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. The tilt-in sashes make the window easy to operate and clean.
Features of the Residential Aluminum Double Hung Windows
- 3-1/4″ aluminum frame depth for residential and commercial construction.
- Both frames and sashes with built-in thermal barriers for enhanced insulation performance.
- Tilt in sashes for easy cleaning and operation.
- 7/8″ Duraseal warm edge insulated glass units for superior energy saving.
- Built-in integral interlock between sashes adds security and energy efficiency.
- Anti-drift clip locks for security and airtight seal.
- Fully-extruded lift handles for durability and easy operation.
- Tilt latches for unique performance.
- Stainless spiral balancing system for better performance.
- Half screen with fiberglass cloth included.
- Commercial rated double weather-stripping and exterior sash seal.
- Rubber weather-stripping on the sash provides better thermal insulation by preventing water and air infiltration.
Residential Aluminum Double Hung Windows
Structural Data & Efficiency Performance
STRUCTURAL TEST DATA:
| Rating: | H-C50 |
|---|---|
| Wind Pressure Load: | 75 PSF |
| Water Penetration Resistance: | 7.5 PSF |
| Air Infiltration at 25mph: | 0.03 CFM |
ENERGY RATING FACTORS:
| Glass: | Low E / Argon |
|---|---|
| Thermal Transmittance (U Factor): | 0.44 |
| Solar Heat Gain (SHGC): | 0.30 |
| Visible Light Transmittance (VT): | 0.54 |
| Condensation Resistance Factor: | 34.0 |
Architectural Shapes
Grid Options
Custom Colors Available
PRODUCT LIST
SINGLE HUNG
DOUBLE HUNG
SLIDING
CASEMENT
Get Pro Pricing & Discounts
773.869.9888
Call Now
Glass Packages
| Packages | Thermal Performance | Cost | Cardinal Glass | Glass Unit | Gas Fill | Spacer System |
|---|---|---|---|---|---|---|
 |
 |
|
 Double Pane LowE-272
|
 7/8″ double pane
|
 Argon
|
 Intercept Warm Edge
|
 |
|
|
 Double Pane LowE-366
|
7/8″ double pane
|
Argon
|
Intercept Warm Edge
|
 |
|
|
Triple Pane LowE-272
|
7/8″ double pane
|
Argon
|
Intercept Warm Edge
|
LoĒ-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping heat back into the room and lowering U-factors. Coupled with our LoĒ² or LoĒ³ glass and argon fill, this double-pane unit delivers performance much better than clear triple-pane – a center of glass U-factor of just 0.20 compared to 0.37 with clear triple-pane.
Tempered Glass Shatters completely under higher levels of impact energy, and few pieces remain in the frame.
Cardinal introduces Neat® naturally clean glass. It harnesses the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. Your windows will stay cleaner longer and will clean easier.
If laminated glass is broken, the vinyl interlayer remains in the frame, with glass fragments adhering to the interlayer. This provides a strong barrier against forced entry and cannot be cut from one side only, which renders glasscutters useless.
Frosted Glass is produced by the sandblasting or acid etching of clear sheet glass. It has the effect of rendering the glass translucent by scattering of light during transmission, thus blurring images while still transmitting light and protecting your privacy.Window Configurations
Options
- Low-E & Argon ~ to enhance the thermal performance of the window.
- Between-the-Glass Grids ~ to provide the elegant appearance of divided light.
- Custom Colors and Finishes
- Full Screen
- Aluminum Mesh Screen
- H Mullions to combine with other 2000 product family (including picture windows, circle tops, transoms & other sliders)
- Cottage style (bottom sash larger than the top sash)
- Oriel style (top sash larger than the bottom sash)
- AC panels
- Triple pane insulated glass
Hardware and Screens
Balancing system: Stainless constant force balances
Pivot bar: Steel
Screen: Fiberglass mesh (Standard), Aluminum mesh (Optional)
Screen frame: Aluminum roll form, heavy duty
extruded aluminum frame (Optional)
Glass Options
