Commercial AluminiumSlidingWindows
Series 2000(For Commercial and Commercial)
Lifestyle Look
- Great performance
- Expose the inside to more natural light
- Ideal for an open lighted feel
- Enhance your outdoor viewpoint

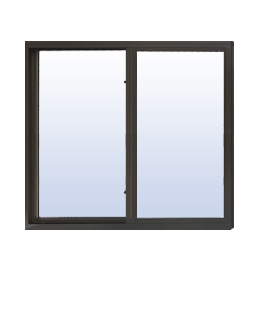

Commercial AluminiumSlidingWindows
Structural Data
STRUCTURAL TEST DATA:
| Rating: | CW-PG35 |
|---|---|
| Wind Pressure Load: | 52.5 PSF |
| Water Penetration Resistance: | 5.25 PSF |
| Air Infiltration at 25mph: | 0.18 CFM |
Architectural Shapes
Grid Options
Custom Colors Available
Residential AluminumSlidingWindows
All purpose quality windows
The Newtec Series 2000 HS thermal break aluminum sliding window has the industry’s finest construction, versatility and is most attractive in the market place. This aluminum sliding window features an innovative polyamide thermal strut technology. This technology thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors. These integrated features provide long term energy efficiency and utility savings to property owners. This series is ideal for both residential and light commercial applications.
Features of the Residential AluminumSlidingWindows
- 3-1/4” aluminum frame depth for residential and commercial construction.
- Both frames and sashes with built-in thermal barriers for enhanced insulation performance.
- 7/8” Intercept WarmEdge insulated glass units for superior energy saving.
- Built-in integral interlock between sashes adds security and energy efficiency.
- Fully-extruded handles for durability and easy operation.
- Half screen with fiberglass cloth included.
- Vent latch for extra safety.
PRODUCT LIST
SINGLE HUNG
DOUBLE HUNG
SLIDING
CASEMENT
TILT & TURN
HOPPER
AWNING
Get Pro Pricing & Discounts
773.869.9888
Call Now
Glass Packages
| Packages | Thermal Performance | Cost | Cardinal Glass | Glass Unit | Gas Fill | Spacer System |
|---|---|---|---|---|---|---|
 |
 |
|
 Double Pane LowE-272
|
 3/4″ double pane
|
 Argon
|
 Intercept Warm Edge
|
 |
|
|
 Double Pane LowE-366
|
7/8″ double pane
|
Argon
|
Intercept Warm Edge
|
 |
|
|
Triple Pane LowE-272
|
7/8″ double pane
|
Argon
|
Intercept Warm Edge
|
Glass Options
LoĒ-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping heat back into the room and lowering U-factors. Coupled with our LoĒ² or LoĒ³ glass and argon fill, this double-pane unit delivers performance much better than clear triple-pane – a center of glass U-factor of just 0.20 compared to 0.37 with clear triple-pane.
Cardinal introduces Neat® naturally clean glass. It harnesses the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. Your windows will stay cleaner longer and will clean easier.
If laminated glass is broken, the vinyl interlayer remains in the frame, with glass fragments adhering to the interlayer. This provides a strong barrier against forced entry and cannot be cut from one side only, which renders glasscutters useless.
Tempered Glass Shatters completely under higher levels of impact energy, and few pieces remain in the frame.
Frosted Glass is produced by the sandblasting or acid etching of clear sheet glass. It has the effect of rendering the glass translucent by scattering of light during transmission, thus blurring images while still transmitting light and protecting your privacy.Window Configurations
Options
- Full Screen
- Aluminum extruded screen frame
- Aluminum Mesh Screen
- H Mullions to combine with other 2000 product family (including double hungs, circle tops, transoms & other sliders)
- Triple Pane glass available
Hardware and Screens
Roller: Brass
Screen: Fiberglass mesh (Standard),
Aluminum mesh (Optional)
Screen frame: Aluminum roll form(Standard)
Heavy duty extruded aluminum frame (Optional)
