Commercial Aluminium Awning Windows
Series 3000
Lifestyle Look
- Bring the outdoors in
- Create a feeling of openness
- Use more natural light
- Create a clean natural feeling
Commercial Aluminium Awning Windows
Structural Data
STRUCTURAL TEST DATA:
| Rating: | CW-PG45 |
|---|---|
| Wind Pressure Load: | 67.5 PSF |
| Water Penetration Resistance: | 9 PSF |
| Air Infiltration at 25mph: | .01 CFM |
Architectural Shapes
Grid Options
Custom Colors Available

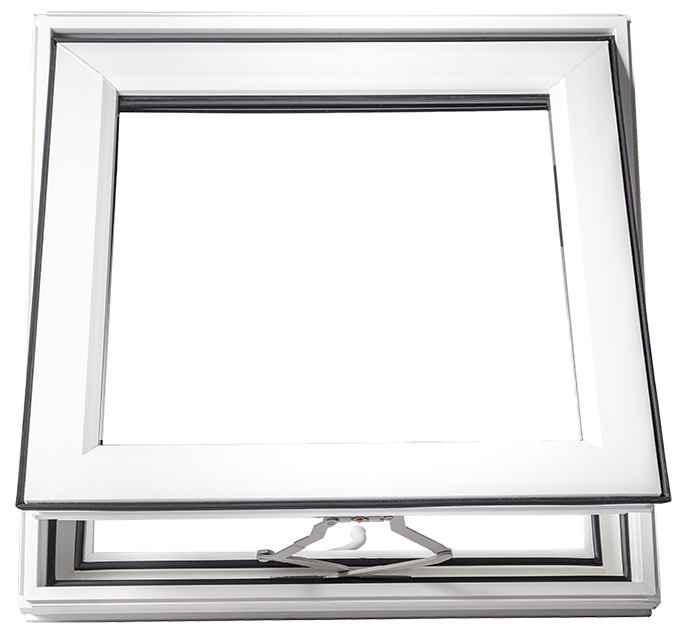

Commercial Aluminum Awning Windows
Thermal Break Aluminum Windows
The Newtec Series 3000 APO thermal break aluminum awning window series is ideal for single or multi-story commercial projects where high strength structural integrity of the window frames is essential. This window features a heavy-duty, high performance frame structure, an innovative polyamide thermal strut technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. The heavy-duty frame construction allows for larger expanses of glass that provide unobstructed views. The state-of-the-art crank casement hardware makes this series a popular choice for developers of prestige commercial projects, and upscale residential communities.
Features of the Commercial Aluminum Awning Windows
- 2-1/2″ frame depth
- 1” Insulated Glass with Duraseal glass spacer of Trueseal Technology
- Heavy Duty Construction Frame for utmost strength and durability.
- Heavy duty operator for smooth operation
- Double Weather stripping prevents drafts and infiltration of moisture and dust.
- Four-Bar HS/SS Friction Hinges ~ hold sash in open position.
- Two Lock/Keeper Assemblies per Sash.
- Full Screens
PRODUCT LIST
SINGLE HUNG
DOUBLE HUNG
SLIDING
CASEMENT
TILT & TURN
HOPPER
AWNING
Get Pro Pricing & Discounts
773.869.9888
Call Now
Glass Packages
| Packages | Thermal Performance | Cost | Cardinal Glass | Glass Unit | Gas Fill | Spacer System |
|---|---|---|---|---|---|---|
 |
 |
|
 Double Pane LowE-272
|
 3/4″ double pane
|
 Argon
|
 Intercept Warm Edge
|
 |
|
|
 Double Pane LowE-366
|
7/8″ double pane
|
Argon
|
Intercept Warm Edge
|
 |
|
|
Triple Pane LowE-272
|
7/8″ double pane
|
Argon
|
Intercept Warm Edge
|
Glass Options
LoĒ-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping heat back into the room and lowering U-factors. Coupled with our LoĒ² or LoĒ³ glass and argon fill, this double-pane unit delivers performance much better than clear triple-pane – a center of glass U-factor of just 0.20 compared to 0.37 with clear triple-pane.
Cardinal introduces Neat® naturally clean glass. It harnesses the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. Your windows will stay cleaner longer and will clean easier.
If laminated glass is broken, the vinyl interlayer remains in the frame, with glass fragments adhering to the interlayer. This provides a strong barrier against forced entry and cannot be cut from one side only, which renders glasscutters useless.
Tempered Glass Shatters completely under higher levels of impact energy, and few pieces remain in the frame.
Frosted Glass is produced by the sandblasting or acid etching of clear sheet glass. It has the effect of rendering the glass translucent by scattering of light during transmission, thus blurring images while still transmitting light and protecting your privacy.Window Configurations
Options
- Argon & Low-E ~ to enhance the thermal performance of the window.
- Between-the-glass grids
- Custom colors & finishes
Hardware and Screens
Operator: Truth operator
Hinges: Truth stainless steel hinges
Screen: Fiberglass mesh (Standard),
Aluminum mesh (Optional)
Screen frame: Extruded aluminum frame
