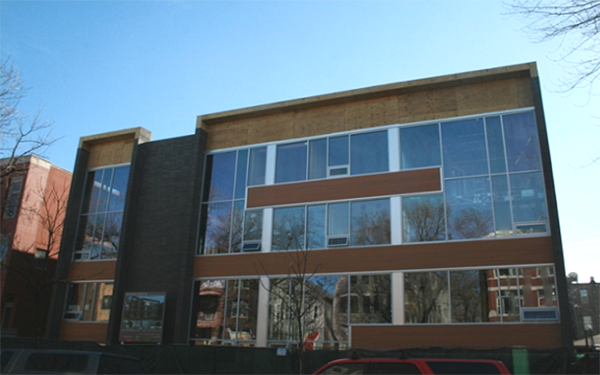

Aluminum Store Front Windows, Doors & Curtain Wall

  • Customize your buildout
  • Ideal for new construction or replacement
  • Heavy duty aluminum
  • energy efficiency built in

Aluminum

Commercial Aluminum Store Front Windows and Doors

Aluminum Store Front Windows and Doors

Newtec Windows offers storefront and curtain wall systems with sheer views, superb performance, wide versatility and quick delivery. With sturdy integrity and cost efficiency. The storefront provides center glazed framing system of this designed primarily for 1/4″ glass, while center glazed framing system of 2″ x 4 -1/2” with thermal break designed primarily for 1″ insulated double glass. The heavy-duty frame construction allows for larger expanses of glass that provide unobstructed views. The storefront systems are incorporated with entrance door systems, and are compatible with all Newtec’s 3000 Series windows. When outside glazing is desired, Newtec offers Curtain Wall system for low- to mid-rise applications. Various depth mullions are available for accommodating single and multi-span structural loads. With the insulated glass, our curtain wall systems are thermally improved to maximize energy efficiency and sustainability.

Architectural Shapes

Custom Colors Available

Configurations



Aluminum

Newtec Windows offers 310 SG and 320 DG Series store front windows and doors and 400 CW Series curtain wall systems with sheer views, superb performance, wide versatility and quick delivery. With sturdy integrity and cost efficiency, 310 SG store front Windows and doors provides center glazed framing system of 1-3/4″ x 4 -1/2” designed primarily for 1/4″ glass, while 320 DG is center glazed framing system of 2″ x 4 -1/2” with thermal break designed primarily for 1″ insulated double glass. The heavy-duty frame construction allows for larger expanses of glass that provide unobstructed views. The store front windows and doors systems are incorporated with 310 ED and 320 ED entrance door systems, and are compatible with all Newtec’s 3000 Series windows. When outside glazing is desired, Newtec presents our 400 CW Series Curtain Wall system for low- to mid-rise applications. Various depth mullions are available for accommodating single and multi-span structural loads. With the insulated glass, our curtain wall systems are thermally improved to maximize energy efficiency and sustainability.

Features of the Picture Window

  • Outside Glazed
  • Screw Spline
  • Gasket is used to position and weather-seal the glass in the aluminum pocket.
  • No exposed fasteners
  • Receptors and sill flashing available
  • Thermally broken profile for 1” glazing



Options
  • 2 1/8” Narrow Stile Door for light to medium traffic
  • 3 1/2 ” Medium Stile Door for medium traffic areas
  • 5” Wide Stile Door for medium to high traffic use
Hardware and Screens
Hinges: Pivot hinge, butt hinge, continuous hinge.
Locking system: Deadbolt lockset with thumbturn cylinder , lever handle lockset, paddle operator
Electric Strike: Adams Rite
Handle:    Offset push bar and pull handle set
Exit device: Adams Rite
Mail slot: CRL mail slot
Threshold: Aluminum 1/2 ” in height
Lock guard: Heavy Gauge Steel
Door closer: CRL DC-50, LCN 4040. Automatic operator

Glass Packages

Packages Thermal Performance Cost Cardinal Glass Glass Unit Gas Fill Spacer System
Double Pane LowE-272 7/8″ double pane Argon Intercept Warm Edge
Double Pane LowE-366 7/8″ double pane Argon Intercept Warm Edge
Triple Pane LowE-272 7/8″ double pane Argon Intercept Warm Edge
cardinal-i89-glass-package-optionsLoĒ-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping heat back into the room and lowering U-factors. Coupled with our LoĒ² or LoĒ³ glass and argon fill, this double-pane unit delivers performance much better than clear triple-pane – a center of glass U-factor of just 0.20 compared to 0.37 with clear triple-pane.
Newtec Windows Tempered Glass OptionsTempered Glass Shatters completely under higher levels of impact energy, and few pieces remain in the frame.
cardinal-neat-glass-glass-package-optionsCardinal introduces Neat® naturally clean glass. It harnesses the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. Your windows will stay cleaner longer and will clean easier.
Newtec Windows Laminated Glass Options If laminated glass is broken, the vinyl interlayer remains in the frame, with glass fragments adhering to the interlayer. This provides a strong barrier against forced entry and cannot be cut from one side only, which renders glasscutters useless.
Newtec Windows Frosted Glass Options Frosted Glass is produced by the sandblasting or acid etching of clear sheet glass. It has the effect of rendering the glass translucent by scattering of light during transmission, thus blurring images while still transmitting light and protecting your privacy.
